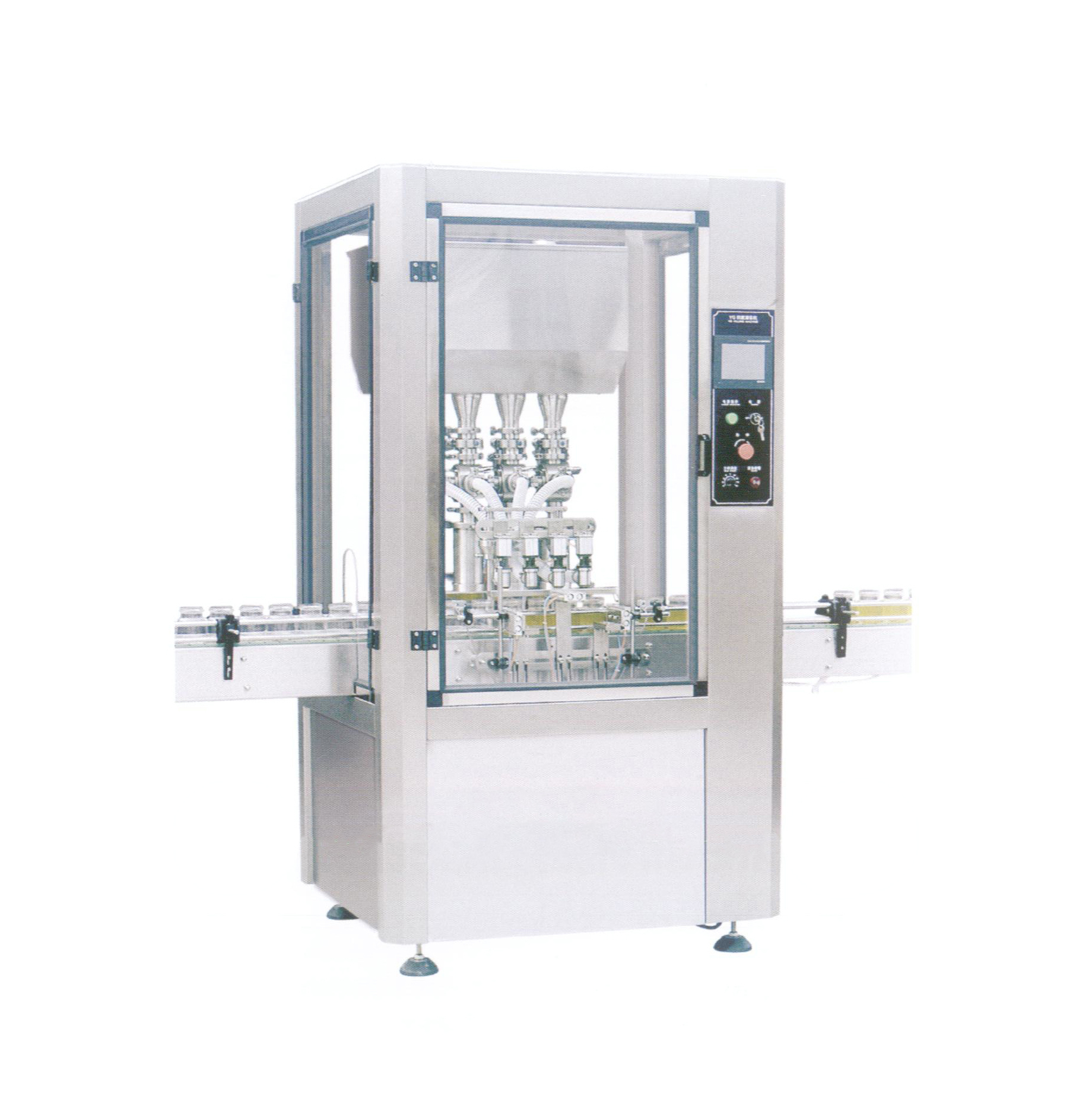

Product description

Feature

u Adopt piston pump to fill high precision, large range of adjusting dosage

u It allows to adjustment of filling colume for all filling pumps at the same time, also for minor adjustment of each filling pump to achieve fill high volume accuracy. This pumpsystem don't absorb thematerial, good chemical stability

u Stainless steel rotary valve to fit to various kind of viscosity product

u Auto shut on/off filling nozzle, avoid leaking and drawing

u Header liquid hopper, auto level sensor control product supply

u Frequancy conversion control speed, auto count output, no bottle no fill

u The whole machine is designed according to requirements of GMP

Main technical parameters

Items	AVF-4	AVF-6	AVF-8	AVF-12	AVF-16
Filling nozzles	4	6	8	12	16
Filling range	20-5000ml		20-500ml
Ideal filling range	20-100ml/50-250ml/100-500ml/200-1000ml/500-2500ml/1000-5000ml
Filling speed(100ml)bpm	30-40bpm	40-60bpm	60-70bpm	70-100bpm	90-120bpm
Filling precision	20-1000ml:≤±1% 1000-5000ml:≤±0.5%
Air pressure range	0.4 - 0.6MPa
Air consumption	10m3/h	15m3/h	20m3/h	30m3/h	40m3/h
Power supply	220V 50/60Hz
Power consumption	0.75Kw	0.75Kw	1.2Kw	2.2Kw	2.2Kw
Single machine noise	≤50Db
Net weight	550Kg	900Kg	1150Kg	1500Kg	1750Kg
Overall dimension(mm)	130012001800	160012001800	190012001800	230012001800	260012001800
