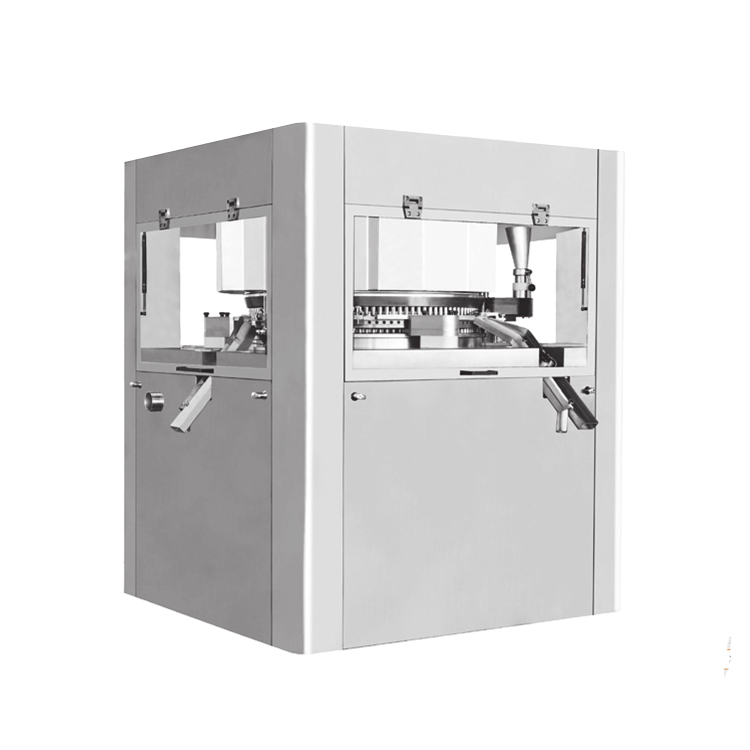

Home » Products » Tablet Press Machine » GZPK-1060 Automatic Tripe Rotary High Speed Tablet Press Machine
Applications
Feeding powder in three hoppers.Tablets compressed at three sides. Tablets ejected through three sides chute.High production efficiency.
Tri-wheeled double deck feeding system.To ensure the uniformity of feeding.
Special oil, dust and noise prevention system.Separate control cabinet to operae the machine;ensures the safety for operator and sanitation for production.
No handwheel control.The filling system use servo motor control which has fast reaction speed. The main pressure and pre-pressure use synchronous motor control.The location of main pressure and pre-pressure measured through the encoder, accurate data and reduce manual errors.
Can adjust filling volume to control tablet weight. If over-fiKing or less-filling or the punch force over-limit,the machine will give alarm.The over-weight and less-weight tablets can be rejected.
With tablet data screen printing function
Technical parameters
|
參數 |
Data |
GZPK-76 |
GZPK-95 |
GZPK-113 |
GZPK-122 |
|
沖頭數 |
No. of stations |
76 |
95 |
113 |
122 |
|
最大產量（片/小時） |
Max output (Tablets/h) |
697000 |
872000 |
1037000 |
1500000 |
|
最大轉速（轉/分鐘） |
Max speed (rpm) |
51 rpm |
68rpm |
||
|
主壓力 |
Main pressure |
100KN |
|||
|
預壓力 |
Pre-pressure |
||||
|
沖具型式 |
Tooling type |
D |
B |
BB |
BBS |
|
最大片徑 |
Max tablet diameter |
25mm |
16mm |
13mm |
11mm |
|
異型片最大長度 |
Max length of irregular tablet |
25mm |
19mm |
16mm |
13mm |
|
中模直徑 |
Diameter of die |
38.1 mm |
30.16mm |
24mm |
21mm |
|
最大填充深度 |
Max filling depth |
20mm |
20mm |
16mm |
16mm |
|
主電機功率 |
Main motor power |
18.5kW |
|||
|
沖桿直徑 |
Diameter of punch |
25.35mm |
19mm |
||
|
重量 |
Weight |
8000kg |
|||
|
主機外形尺寸 |
Dimension of machine |
1720 x 1720 x 2185mm |
|||
Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.
This machine is a single-press type, continuous automatic tablet press for pressing granular raw materi-
als into tablets. It is mainly used in pharmaceutical industry and also the chemical, food, electronic, plastic
and metallurgical industries.
That machine is a single press automatic rotation for shape-pressing equipment, which have the function of press the grains material to be round or irregular shape tablets, such as candy, calcium tablets double-sides with letter printing and etc. which widely suitable for the Industries of pharmaceutical, Chemical, Foodstuff, Plastic Electronic, Powder Metallurgy and so on.
