Technical characteristics
Touch screen + PLC control, the main motor, feeding motor frequency conversion adjustment, the speed is continuously adjustable, and there is a piece weight upper and lower limit control function, load shedding start.
It has a main pressure average display, automatic display of fault function, and automatic stop, alarm and help menu.

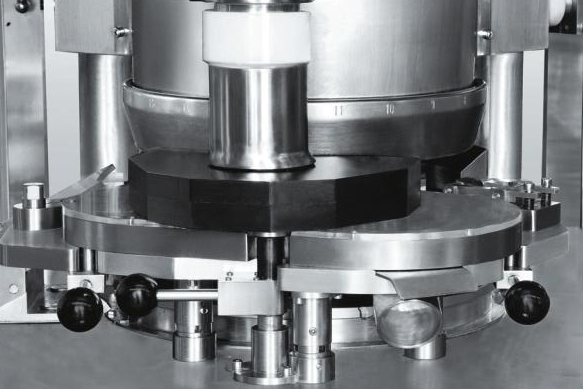

The closed two-layer double impeller is forced to feed, which solves the problem of insufficient feeding by gravity, excessive dust and cross-contamination of the ordinary tablet press. The surface of the feeder bottom plate is matched with the upper surface of the medium punching disc (gap ≤0.03mm) and the role of the scraper, so that the sputum and the leakage powder are no longer stored, and the sheet is suitable for the pressing of the original powder and the fine material. High utilization rate and favorable sheet weight stability.
Technical parameters
|
Data |
GZPK-16 |
GZPK-23 |
GZPK-30 |
|
No. of stations |
16 |
23 |
30 |
|
Tooling type |
D |
B |
BB |
|
Output range (Tablet s/h) |
21000-105000 |
30000-151000 |
39000-198000 |
|
Rotation speed range (rpm) |
22-110rpm |
||
|
Main pressure |
100KN |
||
|
Pre-pressure |
14KN |
||
|
Max tablet diameter |
25mm |
116mm |
13mm |
|
Max length of irregular tablet |
25mm |
19mm |
16mm |
|
Diameter of die |
38.1mm |
30.16mm |
24mm |
|
Max filling depth |
20mm |
||
|
Diameter of punch |
25.35mm |
19mm |
|
|
Length of punch |
133.6mm |
||
|
Pitch circle diameter |
265mm |
||
|
Main motor power |
5.5kW |
||
|
Weight |
1200kg |
||
|
Dimension |
700 x 1000 x 1750mm |
||
|
Remarks |
The maximum output refers to the maximum output achieved when the sheet type is circular, the sheet diameter is the smallest and the rotational speed is the highest. The yield is different with different diameter and type. |
||
Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.

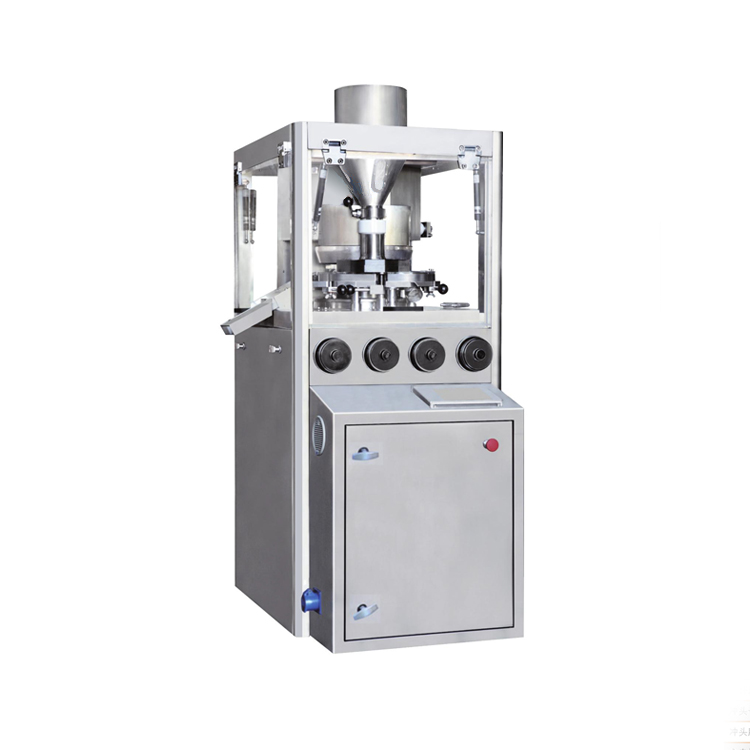

Develop ZP-17D model according to GMP standard .offer such laboratories of R & D institution as the pharmacy ,food ,chemical industry ,etc .
