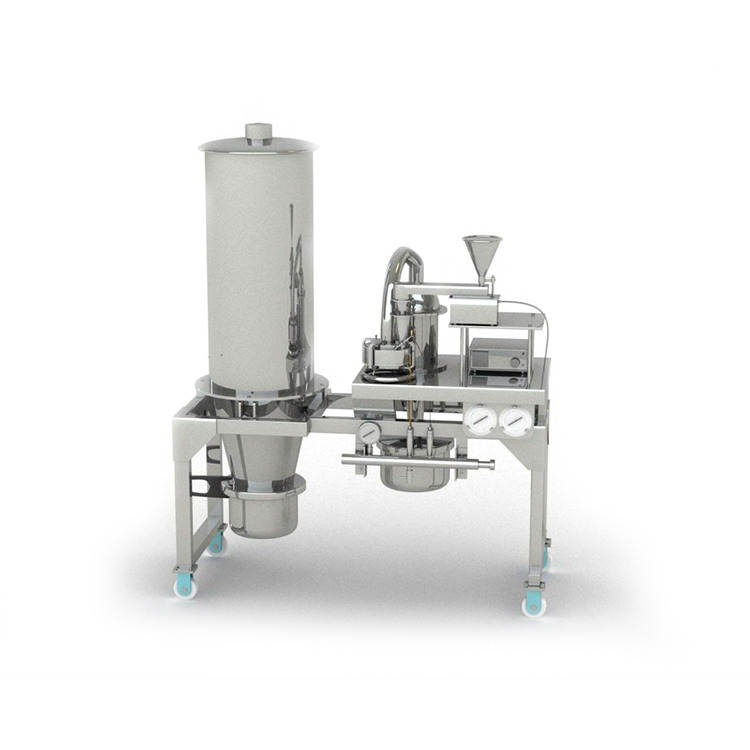

This machine is applied for pharmaceutical, chemical, foodstuff, minerals, pesticides, paint, fuel, new ceramic, magnetic and other brittle material ultra-fine crushing. Especially for small businesses experimental quantity and variety production.
Main Application:
This machine is applied for pharmaceutical, chemical, foodstuff, minerals, pesticides, paint, fuel, new ceramic, magnetic and other brittle material ultra-fine crushing. Especially for small
businesses experimental quantity and variety production.
Working principle:
This machine is used for compressing gases. through feed sprayer, made powder materials (near 60 mesh) which fall from automatic feeder come into mill evenly and continuously.
Meanwhile, by the pulverizing nozzles at the periphery of the pulverizing room, compressed gas from high-speed air flow, then spray into the pulverizing room , make powder particles
impact and rub each other, this attain pulverization goal, After pulverized, the greater pare of the ultra-fine particles are collected under the cyclone separator, part of further fine
particles are collected into filter collector and gases discharge through filter. This machine is simple structure,small volume,easy cleaning.
Model
Grinding press
Feed pressure
Air volume
Handing capacity
Crushing Fineness
Motor power of air comperssor
overall dimension
weight
QS-100
0.6-0.9Mpa
0.6-0.9Mpa
1.1-1.55m3/min
2-10kg/h
300-2000mesh
13-15kw
1320*620*1600mm
140kg
