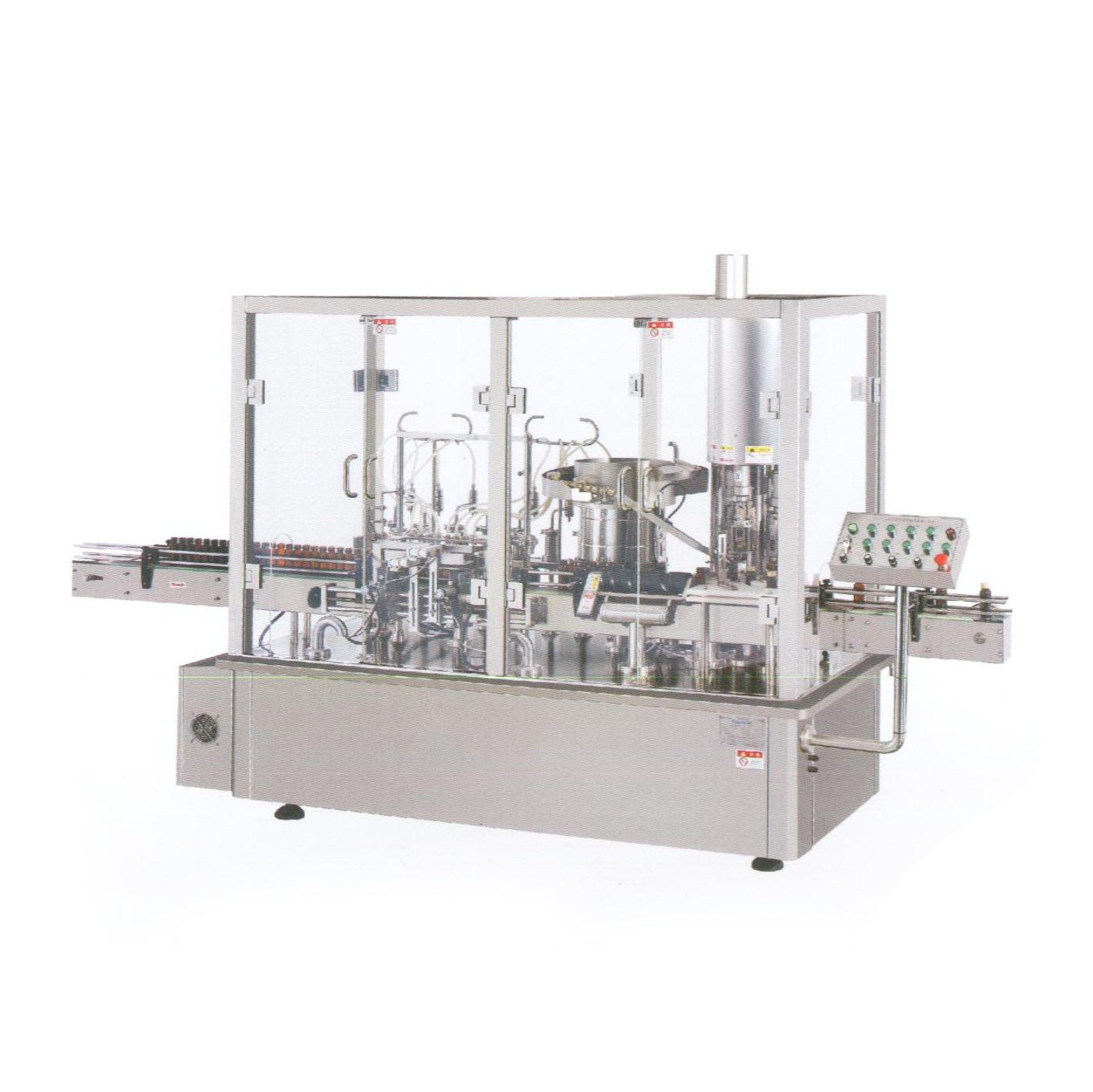

This production line is mainly used in pharmaceutical, healthcare products such as oral liquid, syrup, liquor, healthcare product, tincture in different viscosity packing.
u Monobloc of filling and capping in one machine, low spaceoccupied.

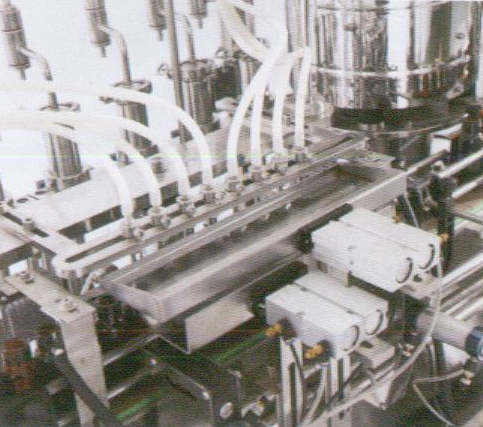

u Adopt volumetric piston pump to fill high precision, fit to light liquid and medium viscosity product, pump is easily taken down, convenient to clean and sterilize.
u The seal ring of piston pump is made of different kinds of matenrial, such as silicone, Teflon etc, optional ceramic pump in special use.
u PLC control system, frequency conversion adjustable speed.
u Filling volume of all pumps is major adjusted in one time, minor adjustment for each pump. Easy and quick operate.
u Filling system has the function of shrinking, no drop leakage. Top bottom fill, mostly reduce foam.
u Machine is applied to different kindsof bottles, convenient adjust, possibly finished at short time.

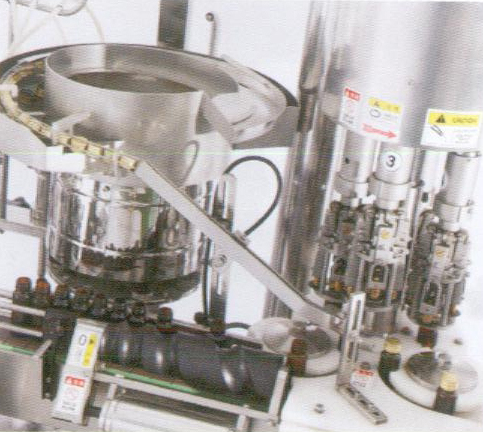

u The capping head use twoknives screw thread, two knives sealing, and blade quenching, durable, seal and threaded are beauty and unity.
u The whole machine meet GMP regulation.
Main Technical Parameter
|
Filling nozzles |
8 |
|
Capping heads |
4 |
|
Filling range |
20-500ml |
|
idea filling range |
20-50ml；50-150ml；100-250ml；250-500ml |
|
Alternative cap type |
Pilfer-proof cap, screw cap, alum, ROPP cap |
|
Production capacity |
3600-4800B/h |
|
Filling precision |
≤±1% |
|
Yield of capping |
≥99.9%、 |
|
Power supply |
220/380V 50/60Hz |
|
Power consumption |
≤2.2Kw |
|
Air pressure range |
0.4-0.6Mpa |
|
Net weight |
1500Kg |
|
Overall dimensions(mm) |
2500*1000*1600 |
