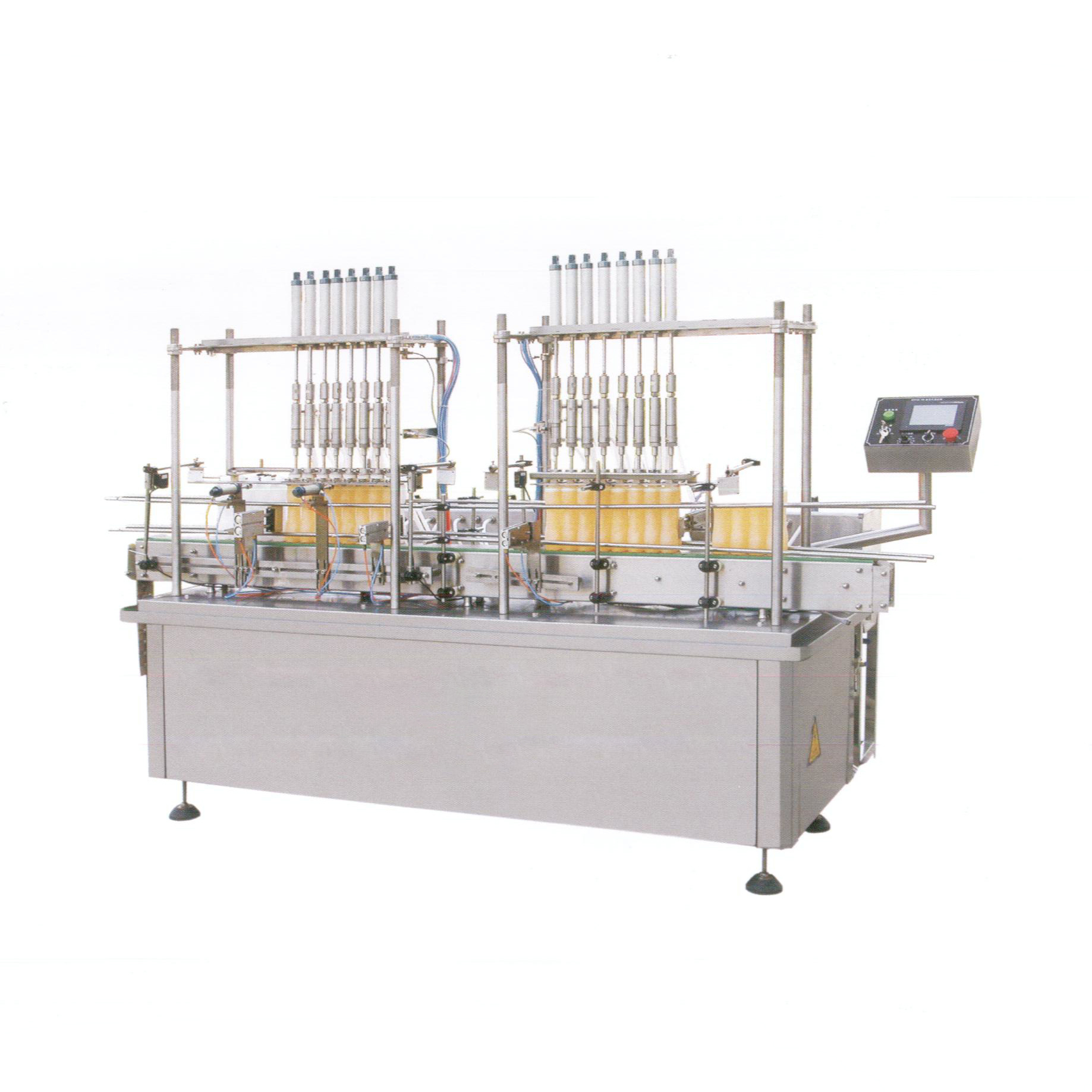

ZHYG linear overflow filling machine, applicable to pharmaceutical, food agricul ture and other industries of the easily-bubble from the liquid filling, the same as the liquid filling without bubble. This can be single used, also can be linked with other euipments, the best anti-foaming filling machine currently in domestic.
Feature
u The implementation of pump filling, overflow fillers to absorb foam & eliminate foam overllow & dripping
u Adopt low liquid hopper, convenient to clean disinfection
u Neck index clamp device, accurate positioning bottle mouth before nozzles go inte the bottles
u Convenient to adjust volume, easy to operate, change different bottle in a short time
u Machine desiagned and manufactured accordance to GMP regulation
Main technical parameter
u Option filling rang:50-5000ml
u Filling head:4,6,8,12,16
u Filling precision:≤±2%
u Request air pressure:≤0.6-0.7MPa
u Air consumption:15m3/h
u Power:220V/380V 50Hz
u Power output:≤2Kw
u Machine noise:≤50dB
u Net weight:≤800Kg
Production capacity (e.g.5000ml )
u 4 heads:≥15bpm
u 8 heads:≥30bpm
u 12 heads:≥45bpm
Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.

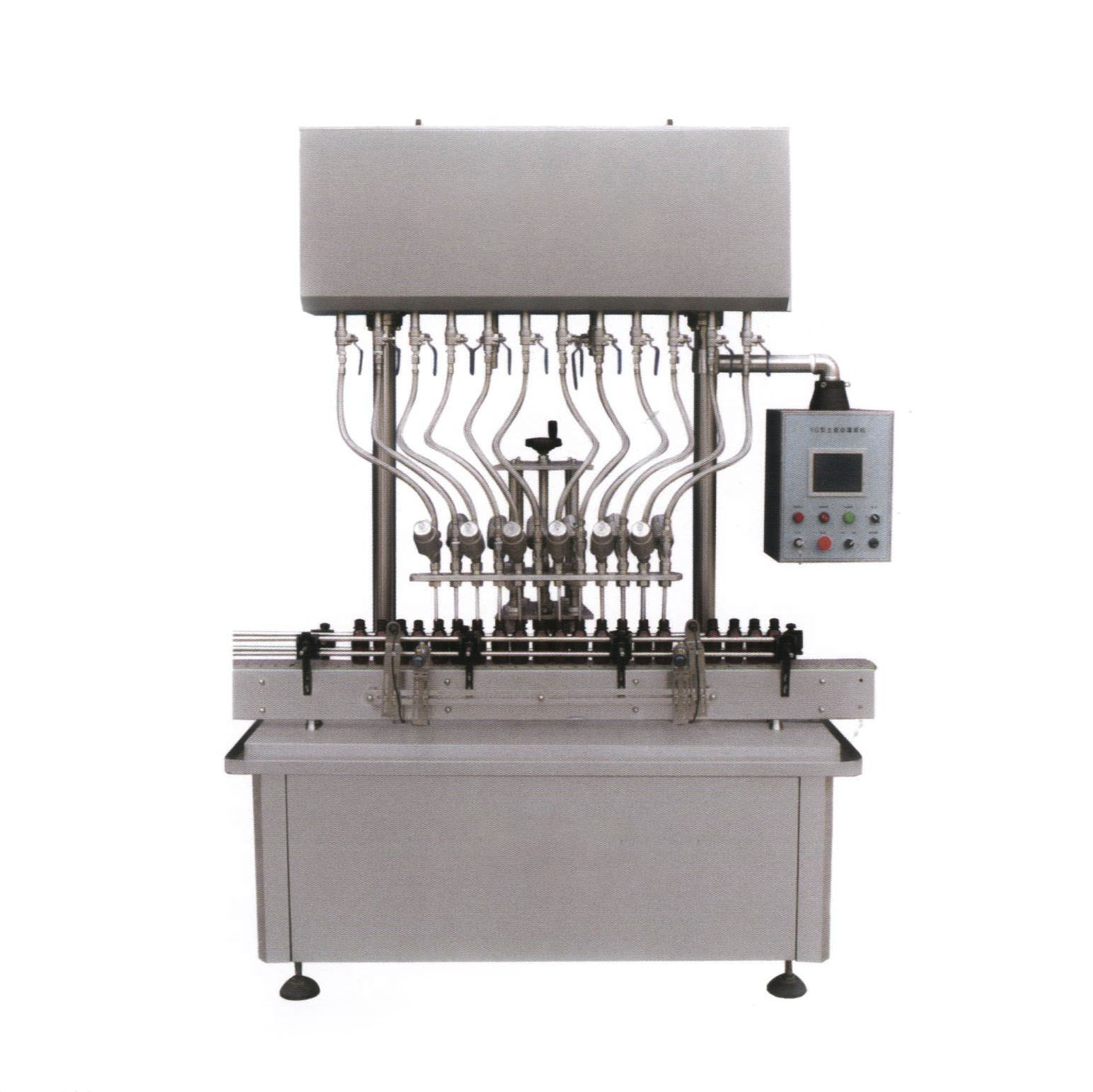

AGF automatic gravity liquid filling machine adopt logic controller PLC, 6" LCD touch screen system, ordinary pressure flow passage parameters, set the flowing time to control different quantify. It applys to pharmaceutical, foodstuff, pesticide, chemical, etc.
