 Home » Products » Blister Packing Machine » DPB-350-250-140 Food Blister Packaging Machine(Chocolate Jam,butter etc)

DPB-350-250-140 Food Blister Packaging Machine(Chocolate Jam,butter etc)

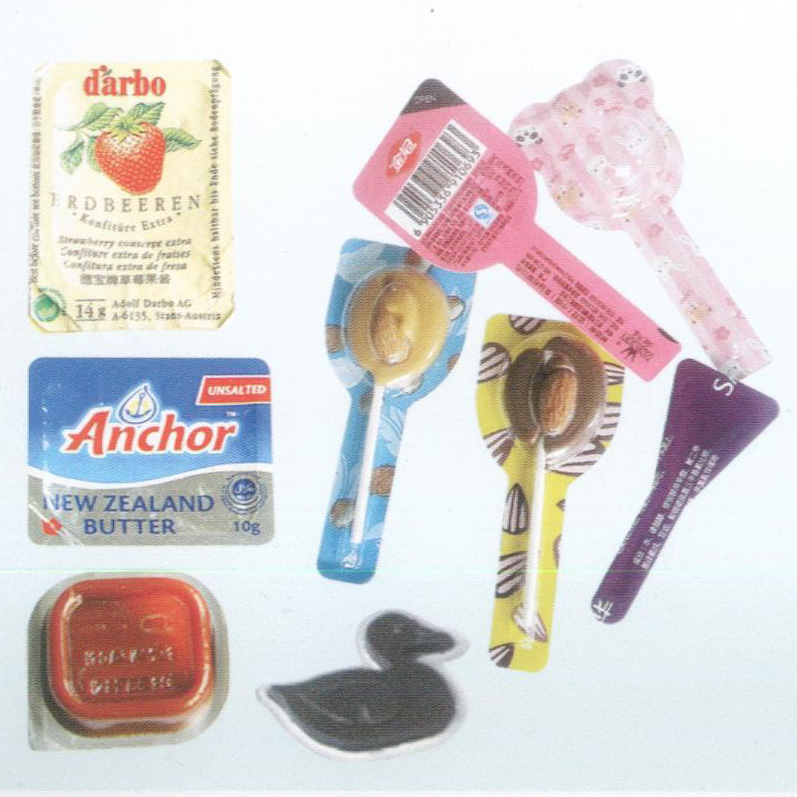

This packaging machine was irinovatively developed by our own company. It is suitable for packaging chocolates, butter, biscuits, lollipop, can dy, cleani ng solution, perfume, esse nee, facemasks etc with AL/PL materials, not standard machin巳 can make special as per customer's requestintegrated with PVC forming, Automatic Feedi ng PTP sealing, batch nu mber p「in ting, perforation, cutti ng, waste win ding. It confomns to "GMP" requirement.

Feature

u Adopt PLC control. Touch Screen operation, Chinese and English Display, easy operation and maintenance.

u Servo motor dragging, digital adjustable stroke, intelligent operation.

u Main drive adopt high speed motor, with high performance, I on ger life, lower no ise, steady runni ng.

u Flat structure, register heating, positive pressure forming, up and down net web, cylinder heat-sealing, adjustable stroke, easy operation.

u Heat-sealing station fixed, it can freely adjusted distance in the same flat surface for forming, perforation and cutter etc parts.

u It is suitable for various sizes of medicine package, and it has high precision and good suitability.



Main technical parameter

u Cutting Frequency(Times/min):6-40

u Max.Forming Area and Depth(mm):360x190x26
u Stroke(mm):40-200(can be manufactured as user's requirements)
u Air Pressure(Mpa):0.4-0.6
u Air supply:≥0.3m3/min
u Total Power:380V/220V 50HZ 6.2kw
u Main Motor Power(kw):1.5
u PVC Hard Pieces(mm):0.15-0.5x360
u PTP Aluminum Foil(mm):0.02-0.035x360
u Dialysis Paper(mm):50-100gx360
u Mould Cooling:tap water or recycling water
u Overall Dimensions ( mm ):4000x600x1650 ( LxWxH )
u Weight(kg):2000
