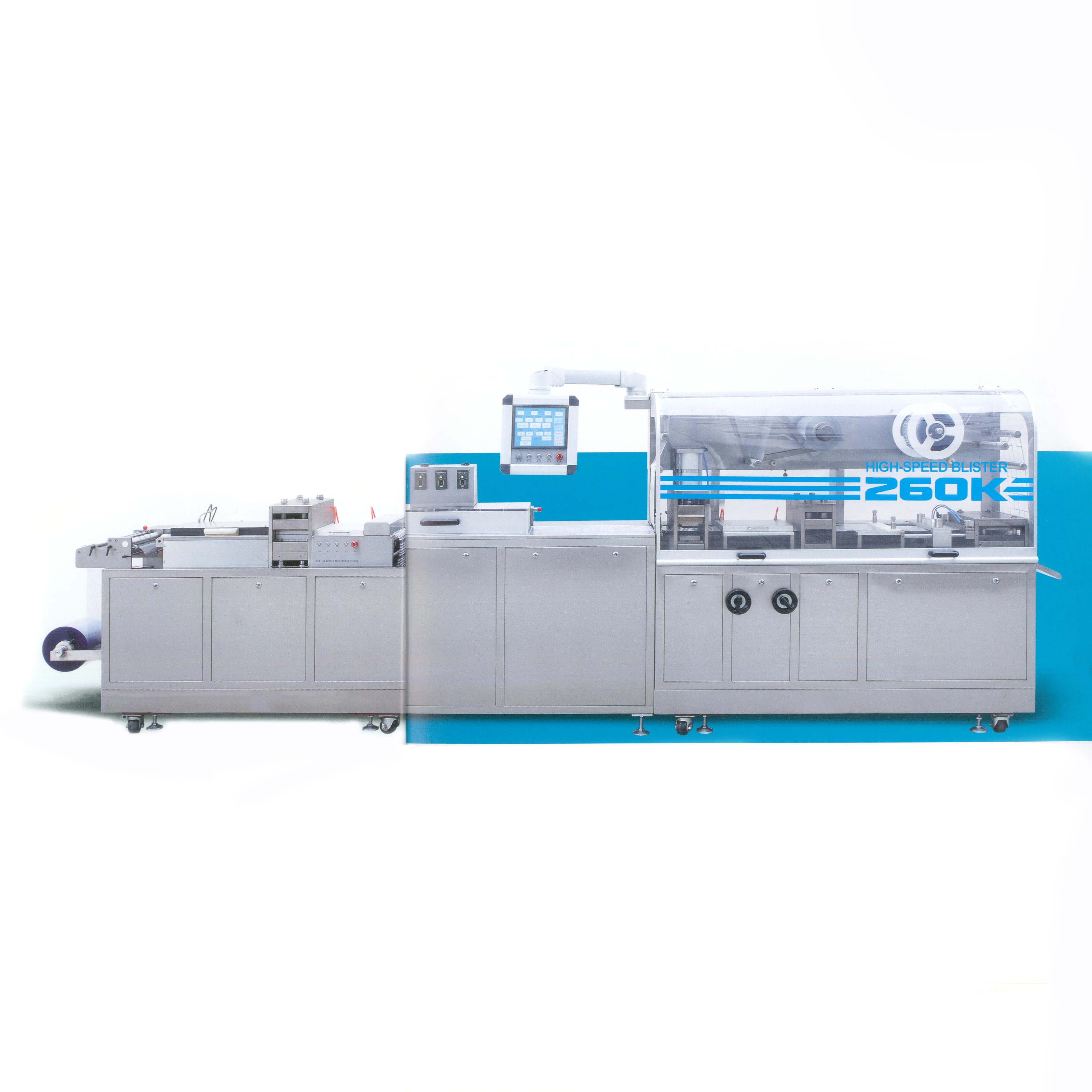

Home » Products » Blister Packing Machine » DPP-260K Flat Plate High Speed Blister Packaging Machine
This machine is newly high speed Blister Packing Machine, Forming station, feeding, heat-sealing and cutter station designed separately, different as original plate design, advanced function,easy operation, high capacity, is ideal choice for large and medium pharmaceutical enterprises, health care products companies etc. It conforms to "GMP" standard requirement.
Feature
u Human Interface PLC control, frequency speed regulation, error display, auto alarm
u Forming station, heat-sealing and cutter station adopt independent drive, double servo dragging, can freely adjust cutter and forming rate between 1:2:3:4
u Machine have three units, working table can make longer as per request, easy to assemble and disassemble, convenient to enter into workshop
u Mould adopt guide rail type, accurate position installation, only need 30-60 minutes to install and disassemble
u Cutter structure adopt "glyph" design, can save more material
u Can add rejection mechanism, connect pillow packing machine, cartooning machine as per request
Main technical parameter
u Cutting speed (Standard sheet 80*57):30-90times/min
u Power(3 phase 4 wires):AC380V/50Hz 1.05Kw
u Max.capacity:21 (10 Thousand pcs/h)
u Adjustable stroke:Forming≤180mm Heat-sealing≤110mm
u Max.forming area:250*170*14mm
u Forming heat power:6Kw
u Heat-sealing heat power:2Kw
u Forming motor and heat-sealing motor power:0.75Kw 1.5Kw
u Air pump pressure:0.6-0.8MPa
u Mould cooling:Include with water cooler
u Packing Material:Medical PVC:0.25*260mm Roller diameter 600mm
Forming Alu:0.15*260mm Roller diameter 600mm
Heat-sealing PTP:0.02*260mm Roller diameteer 300mm
u Machine overall size:5000*650*1750
u Machine Weight:1600kg
Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.
This advanced high-tech XSJ Series Fish Food Blister Packaging Machine is innovated with success to meet the needs in the market by our own research, fellows. It's mainly suitable for packing red worms(akamushi), eelworm, artemia. baby shrimp etc. have been patented by the state patent administration. Its patent number is 200610008264.77. This machine has two models, model 250 and model 140. It is integrated mechanic, electric, pneumatic technologies. All the operations are controlled through signals sent off by the sensor switches. It's equipped with PLC program, simplifying the construction, making the blister locking synchronize with it to achieve the feeding the pet fish food. The packed food won't be destroyed in its cells and nutrients, and the products won't be deteriorated in the fridge at 18 below zero for within two years, which can keep the proteins and vitamins in the food from losing, keeping its sound performance of returning to water.
Learn More
It is a kind of high-tech quality product which is designed and produced on the basis of the comparison with the same type machines by our technicians, especially suitable for the packaging requirements of avoiding moistrure and light, sealing in tropical area and moist area.This machine can be used in three functions including AL/PL/AL, AL/PL, and AL/PL. It is ideal multiple-purpose equipment.
Learn More
This packaging machine was irinovatively developed by our own company. It is suitable for packaging chocolates, butter, biscuits, lollipop, can dy, cleani ng solution, perfume, esse nee, facemasks etc with AL/PL materials, not standard machin巳 can make special as per customer's requestintegrated with PVC forming, Automatic Feedi ng PTP sealing, batch nu mber p「in ting, perforation, cutti ng, waste win ding. It confomns to "GMP" requirement.
Learn More
It is designed with success to meet the needs in the market by our own research fellows.It has PLC Human interface, frequency converter, higher automation, easy operation,beautiful style, full function, well performance and durability. It conforms to "GMP" standards.
Learn More
