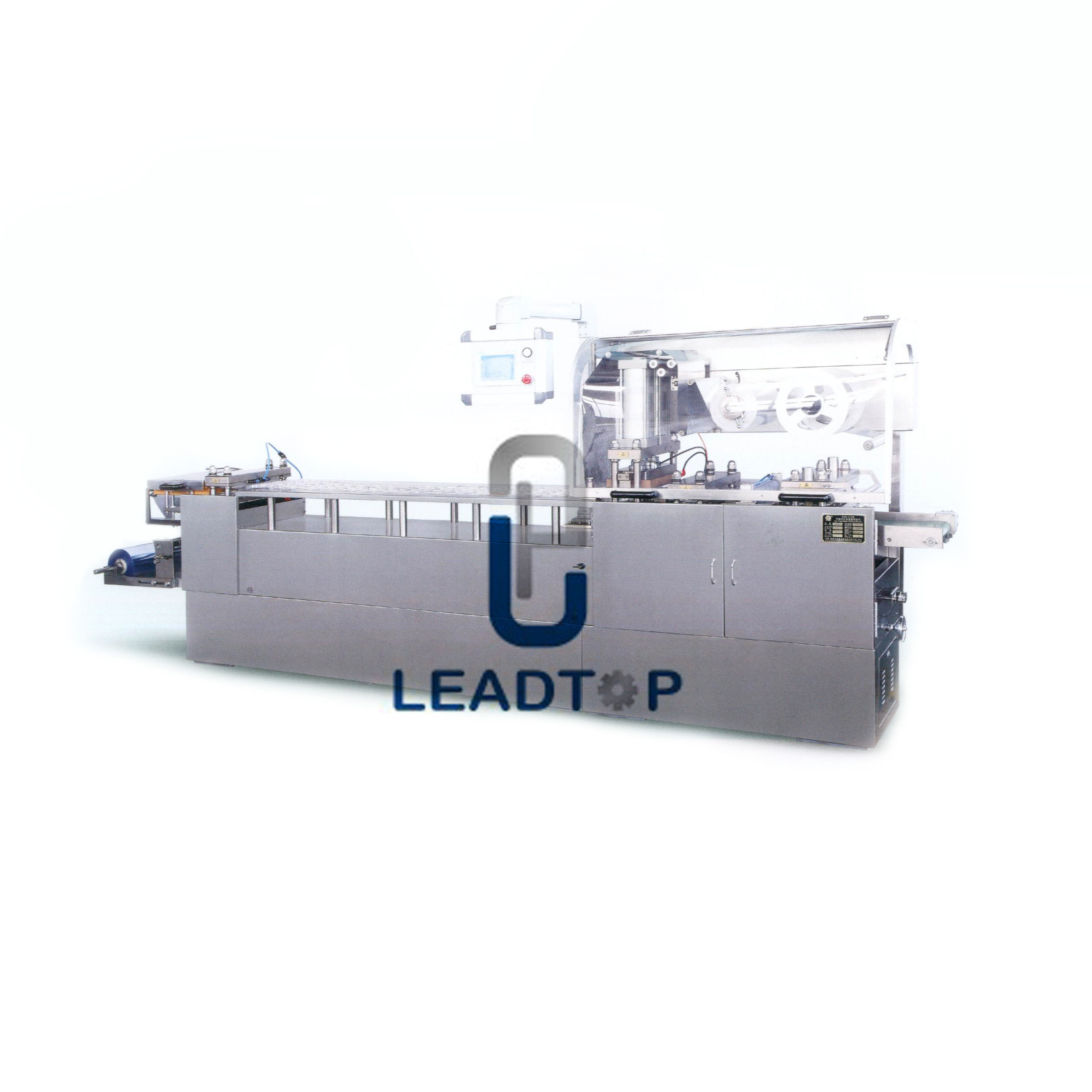

Home » Products » Blister Packing Machine » DPB-350C Flat Plate Blister Packaging Machine

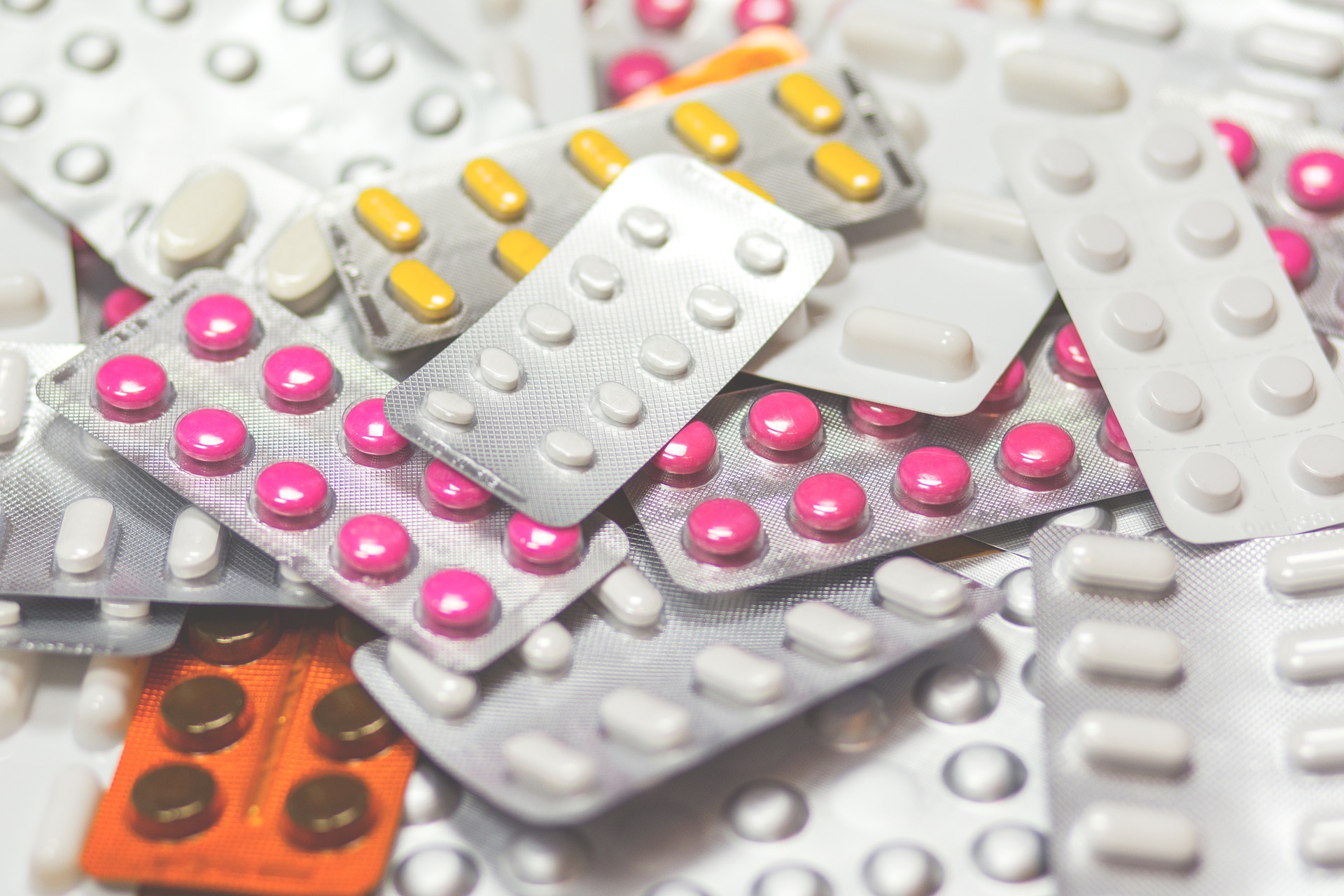

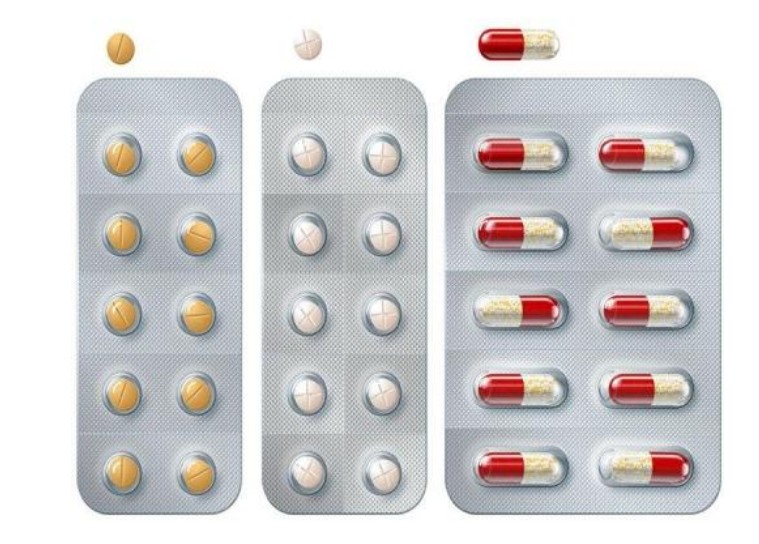

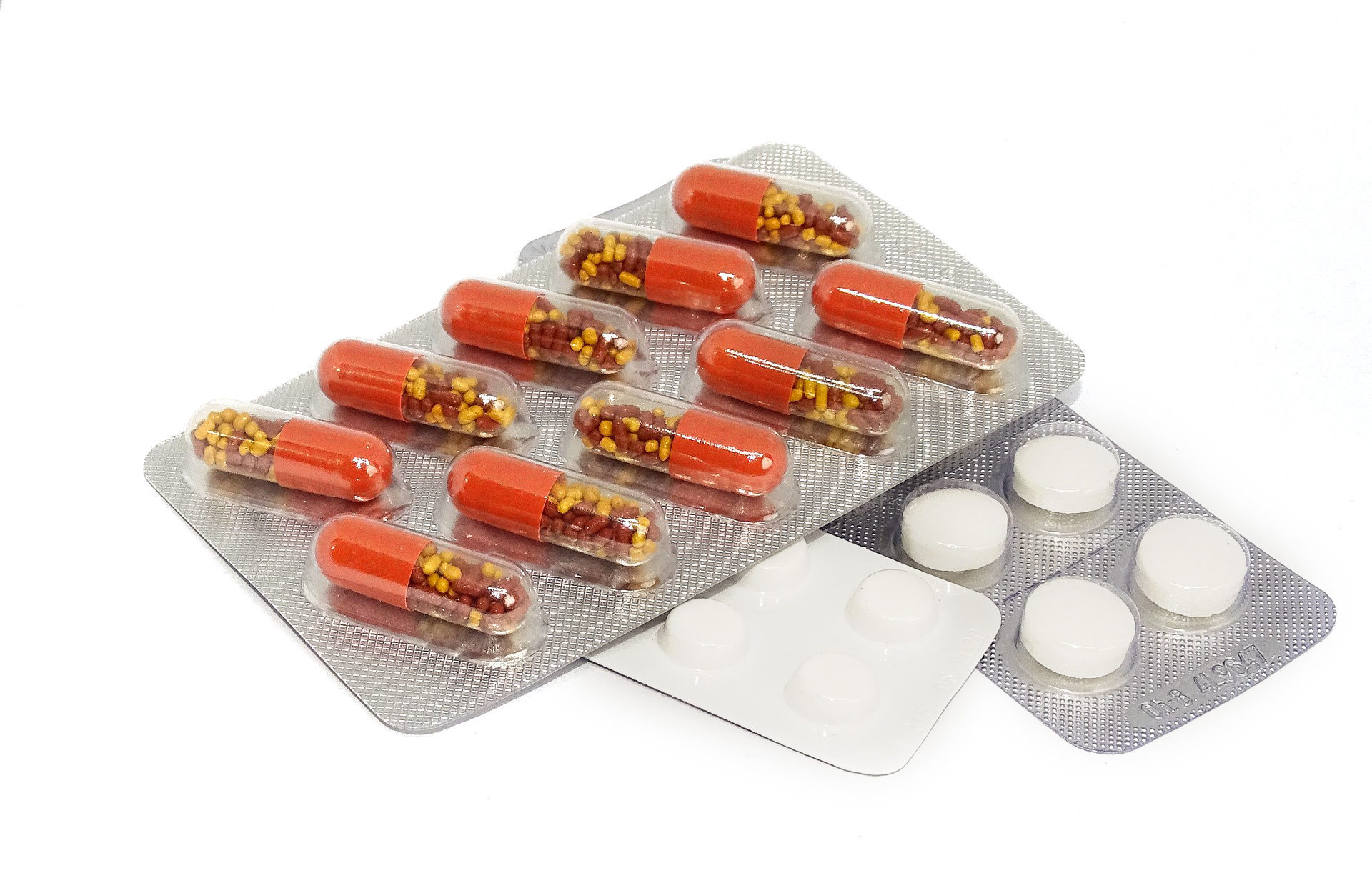

This machine is designed by requirement of "big sheet, deep bubble", it's suitable for packing capsule, tablet, penicillin bottle, oral liquid, candy and irregular shaped AL/PVC, PVC/PAPER package in medicine, food, electronic, medical instrument etc industries, also suitable for health porducts, light industries package.
Feature
u Main drive part adopts Germany imported SEWmotor, chian drive splined shaft, diameter up to 64mm, steady, large torque, longer life
u Human Interface Operate, PLC control, stepless frequency speed regulation
u Servo motor ddragging, adjustable stroke within 40-200mm
u Adopt Photocell Device, make blister sheet more beautiful
u PVC and Alu foil transportation adopt sensor switch control, motor transport, synchronization accuracy, Meterial convey steady
u Adopt Separate structure, easy to enter into clean workshop or through good ladder to enter into building workshop
u Different feeder type as perdifferent products
Main technical parameter
u Cutting speed :6-50times/min
u Power(3 phase 4 wires):380V/50Hz
u Adjustable stroke:40-200mm
u Max.forming area:340*190mm
u Max.forming depth:AL/PVC 26mm
u Forming upper heat power:2.5Kw
u Forming lowper heat power:2.5Kw
u Heat-sealing heat power:3Kw
u Motor power:2.2Kw
u Air pump pressure:0.5-0.6MPa
u Air pump volume Flux:≥0.36m3/min
u Packing Material:Medical PVC:0.26-0.40*360mm
Heat-sealing PTP:0.02*360mm
u Machine overall size:3700*600*1650mm
u Machine Weight:2000kg
