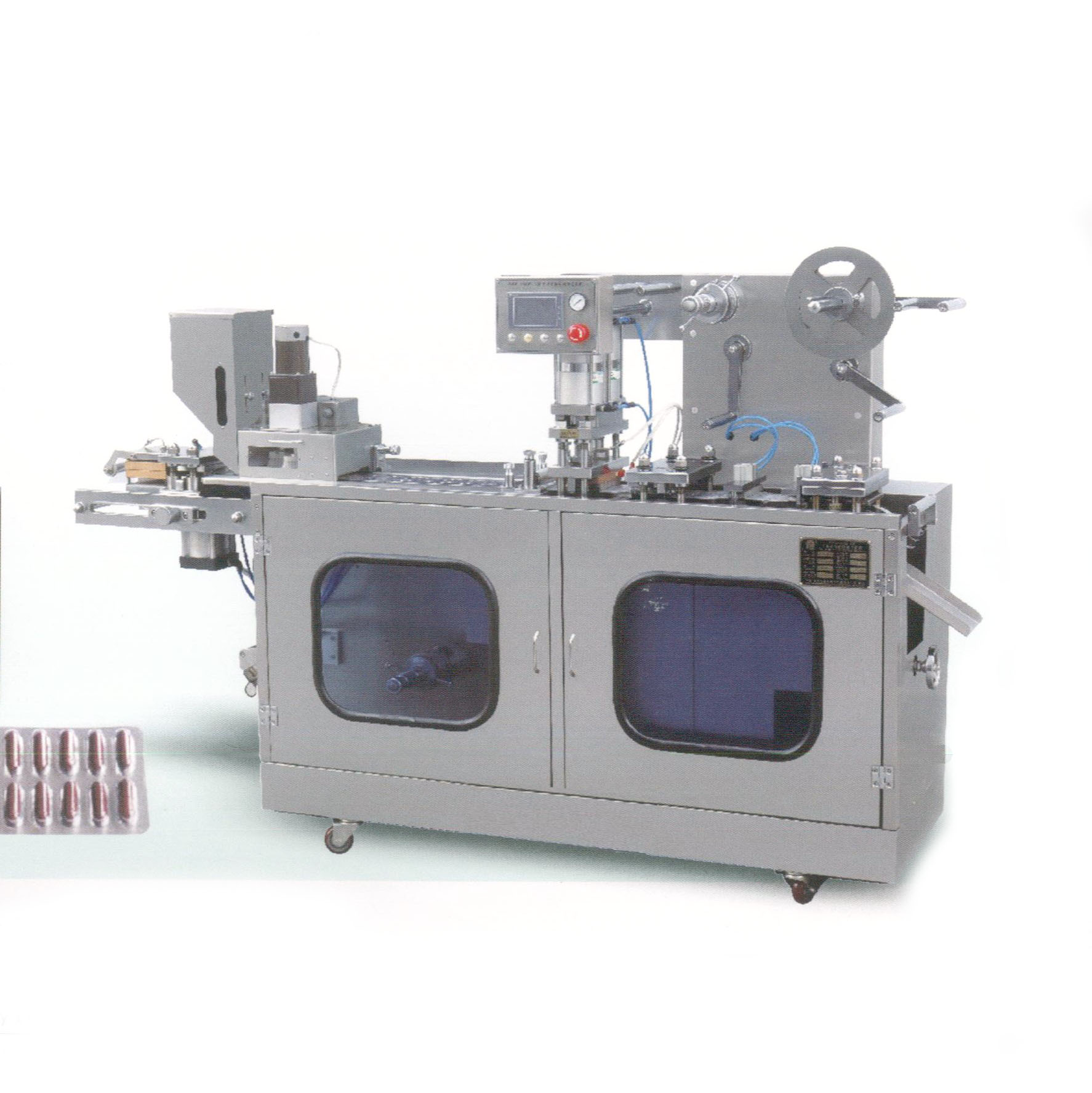

Home » Products » Blister Packing Machine » DPB-140E-I/III Automatic Blister Packaging Machine
Feature
u The main transmission part is adopted with swinging pin-wheel, long life, lower noise, and stable running
u Adjustable stroke can be suitable for various packaging, especially ofr the production requirements of small batch and various kinds of products
u Flat plate structure, can pack some special shaped prodducts, such as elliptic shape, square shape, triangle shape etc
u PVC and Alu Foil adopt motor transportation, sensor control, transportation steady
u 140B-I model machine is suitable for ALU/PVC and ALU/ALU,equipped with special feeder,automatic rejection device
Main technical parameter
u Cutting frequency (times/min) :6-36
u Capacity(10 thousand pcs/h):2-11
u Max.forming area and depth (mm):140*110*14
u Stroke:40-120mm(can be manufactured as user's requirements)
u Standard plate:80*57mm(can be manufactured as user's requirements)
u Air pressure:0.4-0.6MPa
u Air supply:≥0.2m3/min
u Total power:380V/220V 50Hz 3.6Kw
u Main motor power:1.1Kw
u PVC hard pieces (mm):0.15-0.5*155
u PTP Aluminum Foil (mm):0.02-0.035*155
u Dialysis paper (mm):50-100g*155
u Mould cooling:tap water or recycling water
u Machine overall size:2300*500*1410mm
u Machine Weight:600kg
Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.
This machine is newly high speed Blister Packing Machine, Forming station, feeding, heat-sealing and cutter station designed separately, different as original plate design, advanced function,easy operation, high capacity, is ideal choice for large and medium pharmaceutical enterprises, health care products companies etc. It conforms to "GMP" standard requirement.
Learn More
It is designed with success to meet the needs in the market by our own research fellows.It has PLC Human interface, frequency converter, higher automation, easy operation,beautiful style, full function, well performance and durability. It conforms to "GMP" standards.
Learn More
This machine is designed by requirement of "big sheet, deep bubble", it's suitable for packing capsule, tablet, penicillin bottle, oral liquid, candy and irregular shaped AL/PVC, PVC/PAPER package in medicine, food, electronic, medical instrument etc industries, also suitable for health porducts, light industries package.
This machine adopt PLC Human Interface, frequency speed regulation, high automation, easy operation. It integrated with hard ALU(PVC) forming, Automatic Feeding, PTP sealing, batch number printing,perforation,cutting, waste winding. It conforms to "GMP" requirement, suitable for ALU/ALU, ALU/PVC, PVC/Paper package.
