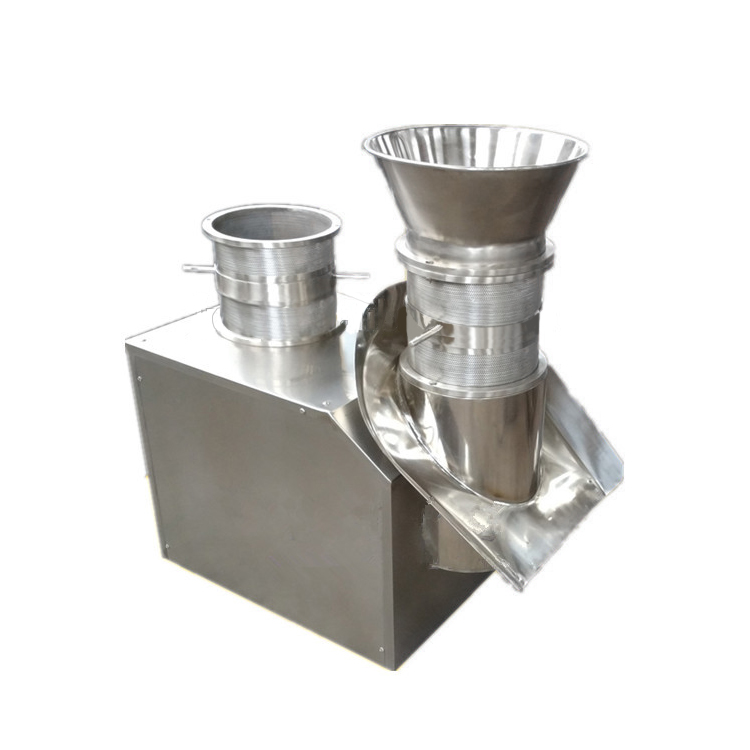

Home » Products » Granulating machine » Factory Supply High Performance Rotary Drum Wet Extruding Granulator
The process of machine is powder and binder mixing to wet material, then to extrude and to spheroidizing on the centrifugal dish, the pellets can be got.
Function
The process of machine is powder and binder mixing to wet material, then to extrude and to spheroidizing on the centrifugal dish, the pellets can be got.
Technical Data
|
Item |
Model/specification |
Unit |
|
Capacity |
5-10 |
Kg/h |
|
Diameter of pellet |
0.7-3.5(by user) |
mm |
|
Power |
8.6 |
Kw |
|
Overall Dimensions |
1550*950*1350 |
Mm |
Complete Set
|
System |
Name |
Material |
Specification |
Place of produce |
|
Extruding system |
Screw |
SUS304 |
?50 |
Haijiang |
|
Motor |
|
1.5KW |
China |
|
|
Inveter |
Siemens |
1.5KW |
Germany |
|
|
Granulating hole cover |
SUS304 |
|
Haijiang |
|
|
Pelleting system |
Rotating motor |
|
3kw stand model |
china |
|
Pelleting chamber |
|
δ=12mm |
Haijiang |
|
|
Rotor disk |
SUS304 |
? 400
|
Haijiang |
|
|
Blower |
|
1.1 kw volution pump |
china |
|
|
Inveter |
Siemens |
1.1KW |
Germany |
|
|
Control system |
Main The part of electric |
siemens |
|
germany |
|
Touch screen |
Siemens |
Siemens7’’ |
Germany |
|
|
PLC |
|
Siemens |
Germany |
Easy Damaged Part
|
Item |
Specification |
Number |
Place of production |
|
Silicon sealing |
|
10m |
China |
Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.

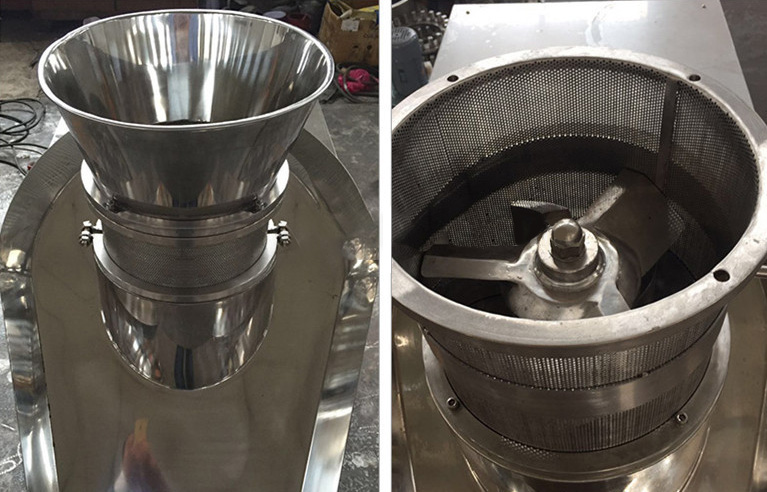

All material contact part make by the SUS304.
Drive part use motor drive the gear box.
Some of the part with welding, gear box with flange combined with the extruder together.
All material contact part make by the SUS304.
Drive part use motor drive the gear box.
Some of the part with welding, gear box with flange combined with the extruder together.
All material contact part make by the SUS304.
Drive part use motor drive the gear box.
Some of the part with welding, gear box with flange combined with the extruder together.
All material contact part make by the SUS304.
Drive part use motor drive the gear box.
Some of the part with welding, gear box with flange combined with the extruder together.
