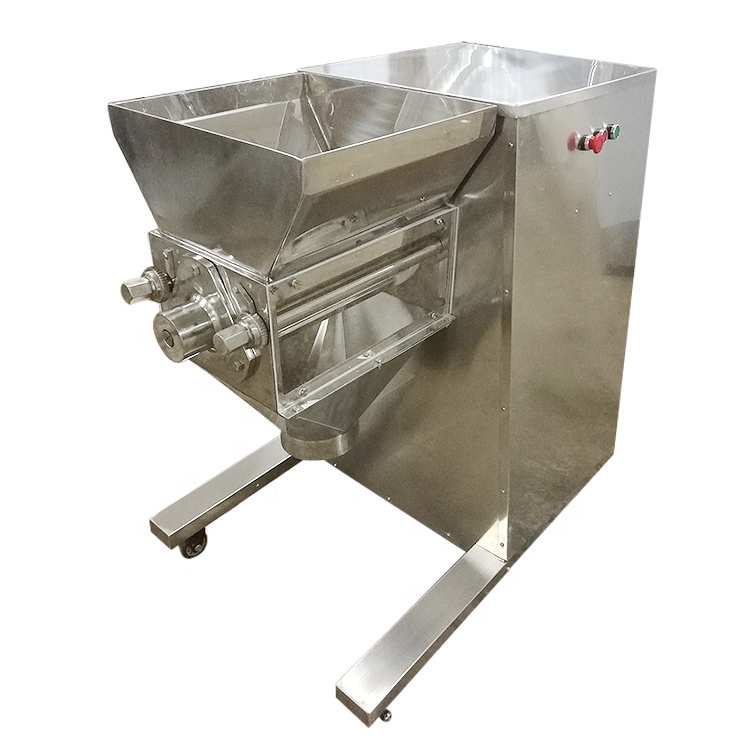

Home » Products » Granulating machine » stainless steel food extrusion granulator
All material contact part make by the SUS304.
Drive part use motor drive the gear box.
Some of the part with welding, gear box with flange combined with the extruder together.
Configuration:
All material contact part make by the SUS304.
Drive part use motor drive the gear box.
Some of the part with welding, gear box with flange combined with the extruder together.
Working principle:
Motor drive the gear box, make the roller extrude the material from the sieve hole, and the cutter outside cutter the stick material to the granules, and you can choose the amount of the knife to adjust the length of the granules.
Technical data:
| Model | LTXL |
| Dia. Of sieve | 85mm |
| Size of sieve | 0.8mm or 1mm |
| Roller speed | 55r/min |
| Capacity | 200g/batch 3kg /H |
| Power | 180W |
| Motor speed | 30r/min |
| Weight | 20KG |
| Size |
500x600x650 |
