Drying for wet granules and powder materials of screw extruded granules, swaying granules, high-speed mixing granulation in the fields such as Pharmacy, food, feed, chemical industry and so on. Large granules, small block, viscous block granular materials. The materials such as Konjak, polyacry lamide and so on, which will have the volume changed during drying.
Application:
1.Drying for wet granules and powder materials of screw extruded granules, swaying granules, high-speed mixing granulation in the fields such as Pharmacy, food, feed, chemical industry and so on.
2.Large granules, small block, viscous block granular materials.
3.The materials such as Konjak, polyacry lamide and so on , which will have the volume changed during drying.
Principle:
After air is purified and heated, then it will be introduced from the bottom of induced-draft fan and passed through the screen plate of raw material. In working chamber, the state of fluidization is formed through stirring and negative effect. The moisture is evaporated and removed rapidly and the raw material is dried quickly.
Feature:
1.Fluidized bed is round so that to avoid the dead corner.
2.Inside the bed has installed a mixer, so that to avoid damp materials agglomerating and the channeling during drying.
3.The cloth-bag filter at the top is made of the special antistatic fibers to ensure the safety of the operation.
4.Overturning discharge of the machine is convenient, quick and complete.
5.Operated at sealed negative pressure and designed by GMP.
6.This equipment can be designed and manufactured to be feeding
Technical Data

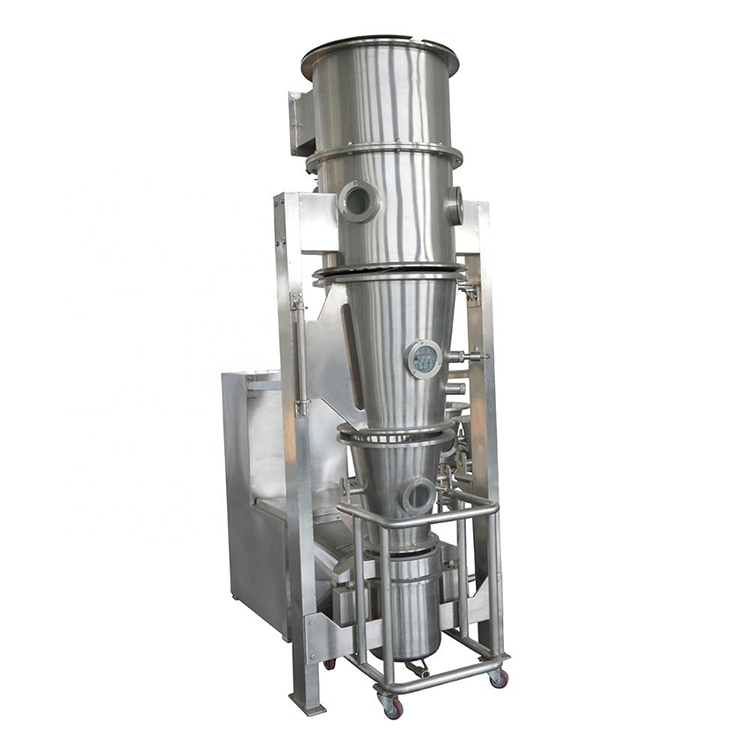

GFG150 High Efficiency Boiling Drying Machine
Model
GFG-150
Item
Capacity of material bucket(L)
500
Production capacity(kg\batch)
100-150
Temperature of inlet air (℃)
indoor ~100℃ adjusting
Blower Fan
Air volume(M3/h)
4901
Air pressure(pa)
679
Power of Motor(kw)
18.5
Blending Motor
Revolving Speed(r/min)
11
Power of Motor(kw)
0.75
Steam
Consumption(kg/h)
240
Height of main machine(mm)
2900
