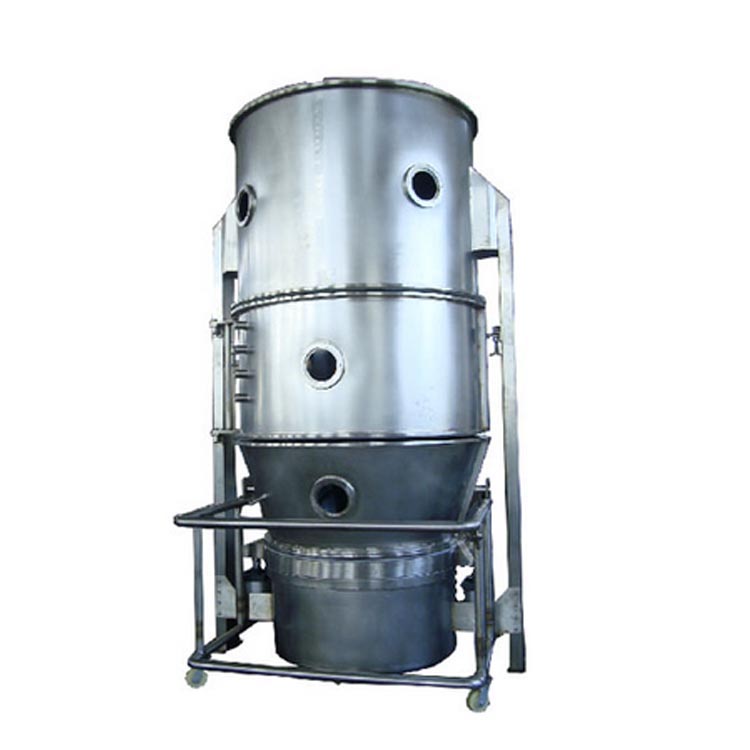

The powder granule in fluid bed appears in the state of fluidization. It is preheated and mixed with clean and heated air. At the same time the solution of adhesive is sprayed into the container. It makes the particles become granulating that contains adhesive. Being of unceasing dry through hot air, the moisture in the granulating is evaporated. The process is carried out continuously. Finally it forms ideal, uniform and porous granules.
The powder granule in fluid bed appears in the state of fluidization. It is preheated and mixed with clean and heated air. At the same
time the solution of adhesive is sprayed into the container. It makes the particles become granulating that contains adhesive. Being of
unceasing dry through hot air, the moisture in the granulating is evaporated. The process is carried out continuously. Finally it forms
ideal, uniform and porous granules.
6.No dead-corner of equipment; it is easy and rapid of feeding or discharging materials and clean of washing to satisfy the GMP standard.
Technical Data
|
Model |
150 |
|
Volume (L) |
420 |
|
Amount to be treated (kg/per time) |
80/160 |
|
Power of fan (kw) |
18.5 |
|
Consume of steam 0.4MPa(kg/h) |
211 |
|
Consume of compressed air (m3/min) |
0.3 |
|
Noise,dB (A) |
(fan is installed separately) ≤75 |
|
Main machine height (m) |
2.2×1.65×3.3 |
