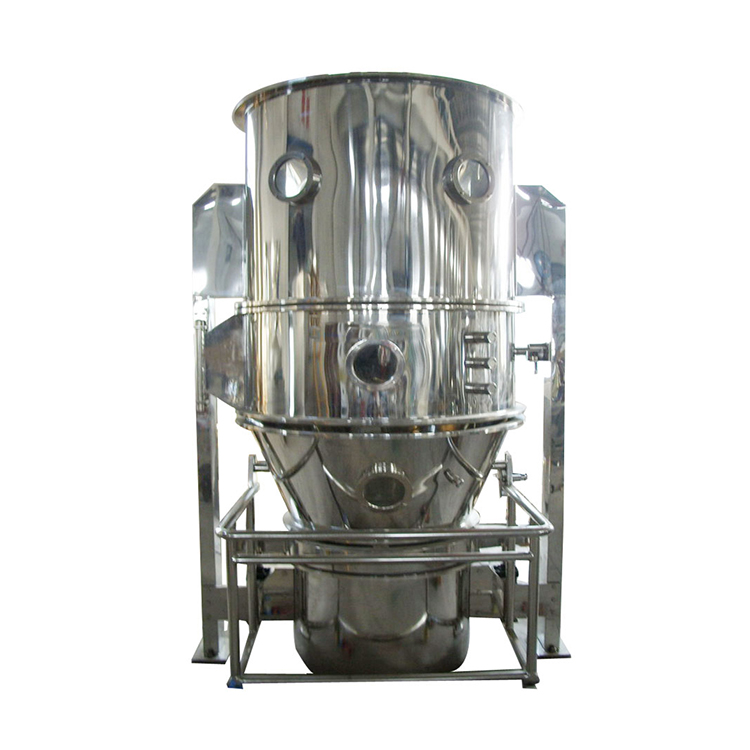

The PGL80 fluid dry bed granulator is suitable for Chinese traditional medicine granule, such as capsule and no or low sugar and tablet or coating of granule.
Multi-fluid nozzle. Particularly it is suitable for material that contains component of amylase and has strong viscosity or heat sensitive product
The structure of spraying drying chamber, filtering chamber, fluid-bed and secondary air supply system has been improved greatly.
Applications:
The PGL80 fluid dry bed granulator is suitable for Chinese traditional medicine granule, such as capsule and no or low sugar and tablet or coating of granule.
Multi-fluid nozzle. Particularly it is suitable for material that contains component of amylase and has strong viscosity or heat sensitive product
The structure of spraying drying chamber, filtering chamber, fluid-bed and secondary air supply system has been improved greatly.
Features:
It can appear the features of spraying drying deeply
Designed and manufactured laid out by GMP
Can realize continuous spraying process of immersed paste
Simple and reliable operation
Improve spraying and drying efficiency
Compared with FL, the fluid-bed is more constant and the adjusted air amount is more
reasonable. The drying degree is improved and the "died bed" is overcome
Technical data:
|
Specification item |
80 |
|
Container of material |
670L |
|
Liquid speed: |
60-100kg/h |
|
Specific gravity of liquid |
<1.3kg/L |
|
(0.6MPa) Consumption of steam |
300kg/h |
|
(0.6MPa) Compressive air |
1.3cbm/minAuxiliary fan: 1.5kW |
|
Main fan |
22kW |
