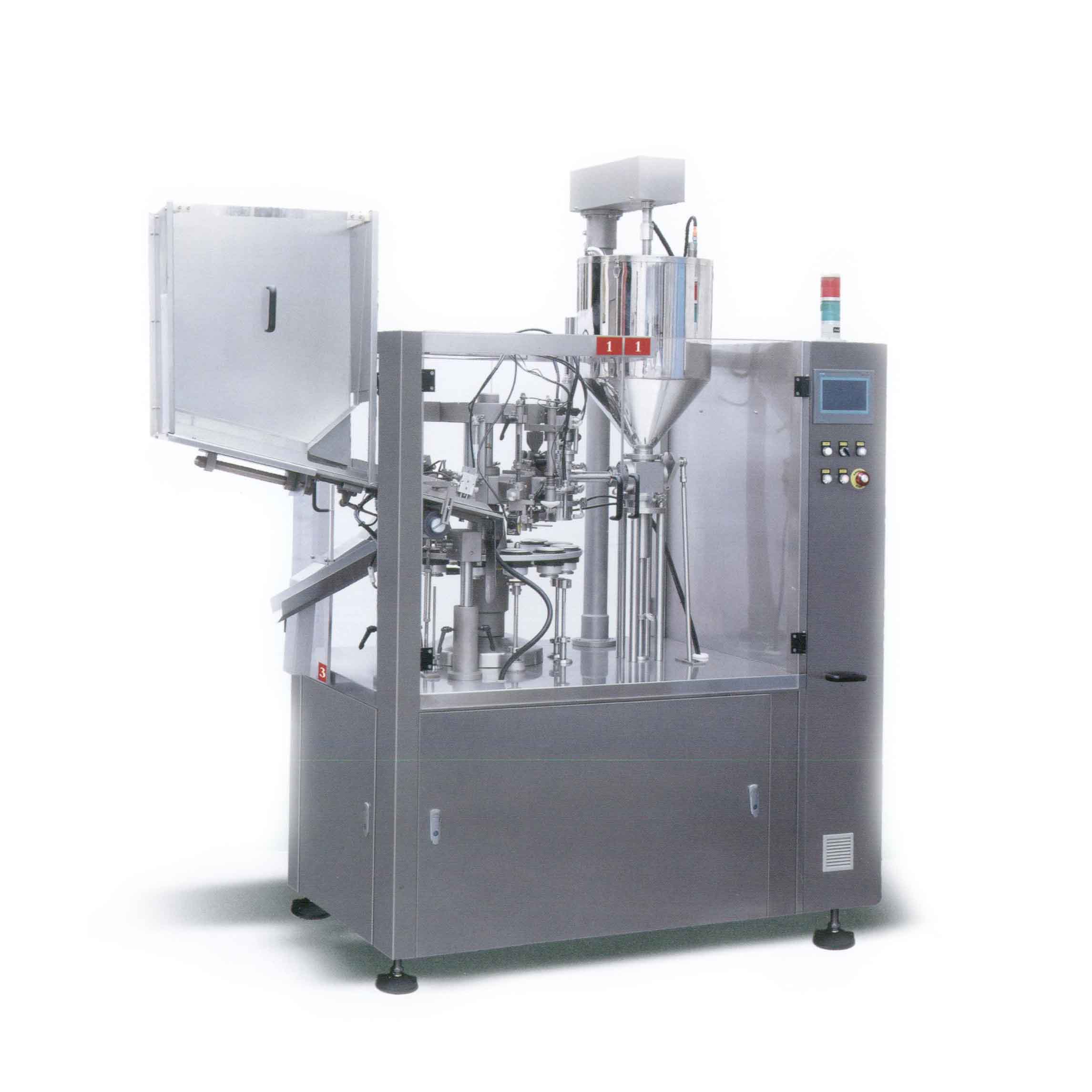

Home » Products » Liquid Filler » NF-60Z/60A/80A Automatic Filling and Sealing Machine
Feature

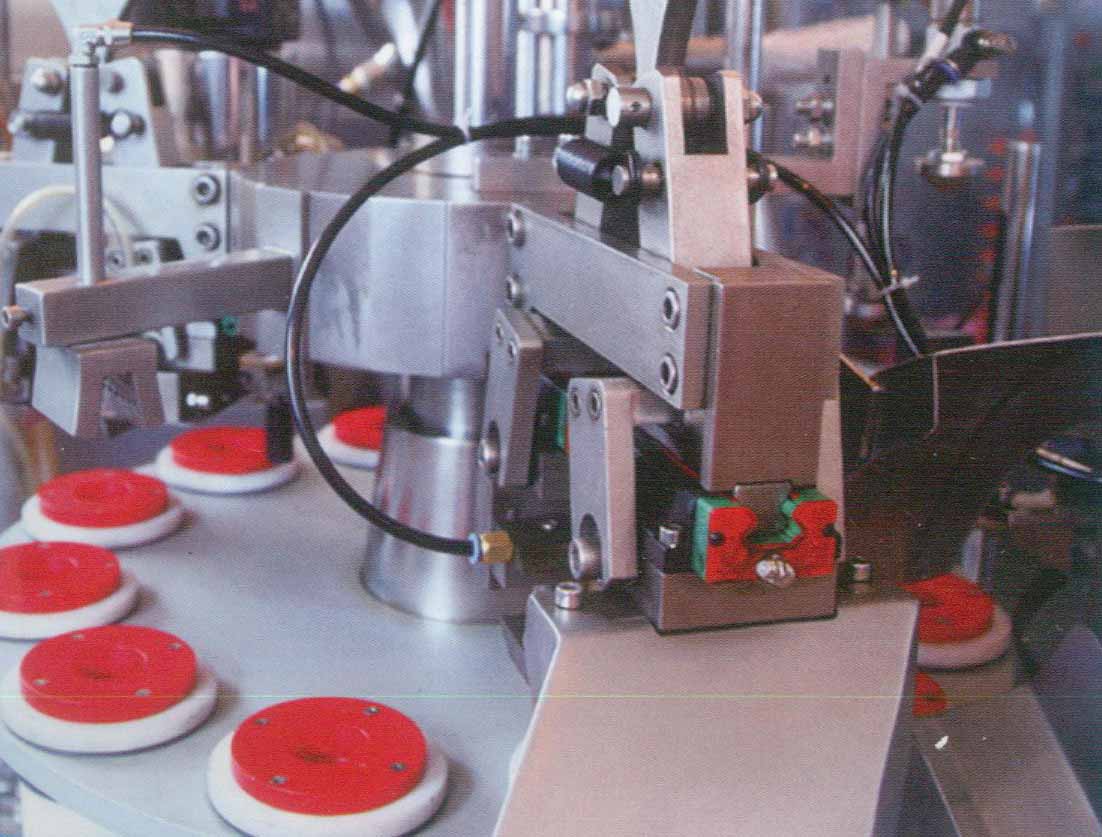

u With 12 working stations and matching with manipulator, the machine is able to meet different type of tail folding, sealing requirements of plumbum tube, ALU tube, plastic tube and laminated tubes. It is a multi-purpose machine.
|
Model |
NF-60Z |
NF-60A |
NF-80A |
|
Filling Speed |
60 pcs/m |
60pcs/m |
80pcs/m |
|
Filling Range |
5-180ml/pcs |
5-240ml/pcs |
5-300ml/pcs |
|
Filling Accuracy |
≤±1% |
≤±1% |
≤±1% |
|
Diameter of Soft Tube |
Φ10-φ35mm |
Φ10-φ50mm |
Φ10-φ50mm |
|
Length of Soft Tube |
50-180mm |
50-210mm |
50-210mm |
|
Tube Material |
Plastic tube, laminated tube, ALU tube and plumbum tube |
||
|
Power Supply |
380V/220V |
||
|
Working Pressure |
0.55-0.65Mpa |
||
|
Suited Motor |
1.1Kw |
1.5Kw |
|
|
Heat Seal Power |
3.0Kw |
||
|
Overall Dimension |
2000*950*1900 |
2200*1220*2400 |
|
|
Machine Weight |
850Kg |
1300Kg |
|
