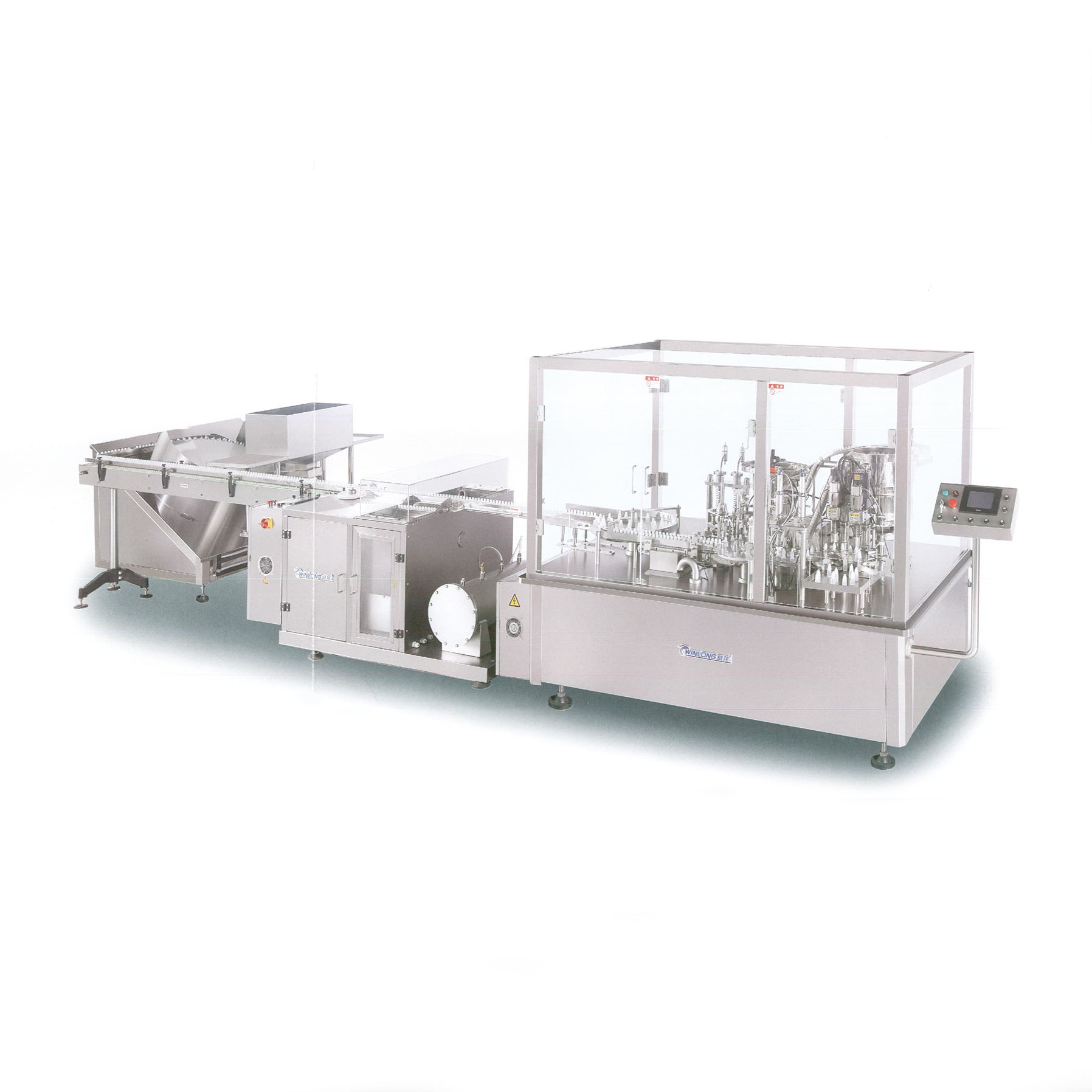

The prooduction line of the eye drops is mainly to the completion of the eye drops bottle Unscrambler,bottle conveying, air wash, metering packaging, plus stuffed inside and outside screw etc processed.
Main technical parameter
|
Bottle used |
5-30ml plastic bottle |
|
Production capacity |
90-120bpm |
|
Filling nozzles |
4 |
|
Bottle air washing heads |
12 |
|
Plug placing heads |
2 |
|
Capping heads |
2 |
|
Filling precision |
≤±1% |
|
Qualified bottle air washing |
100% |
|
Qualified plug placing |
≥99.8% |
|
Qualified cap screwing |
≥99.8% |
|
Compressed air required |
10m3/h 0.6-0.8MPa |
|
Total power |
≤5KW 380V(220V) 50HZ |
|
Net weight |
3000KG |
|
Overall dimension |
6780*2380*2000(Exclude LAF) |
