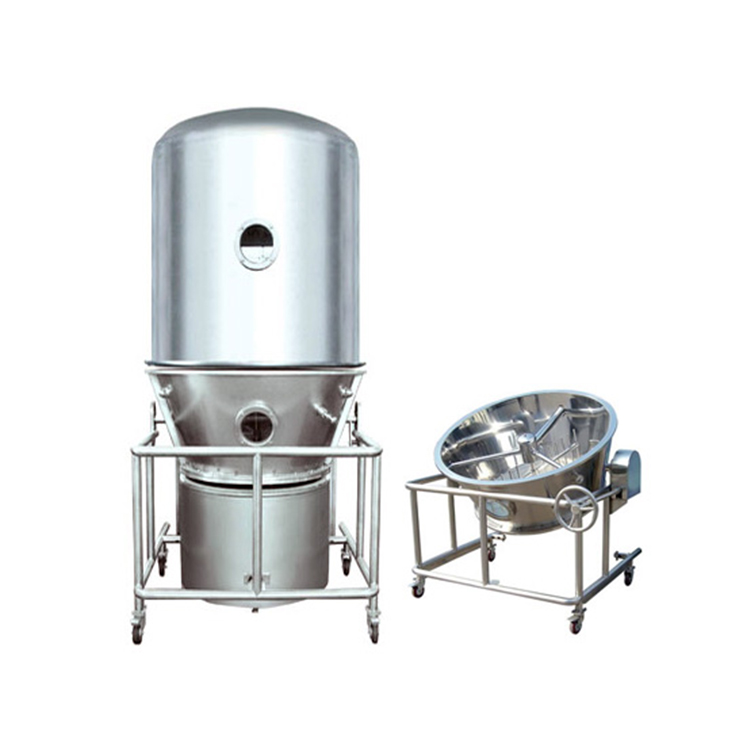

1.The FG series Boiling Fluid Bed Dryer can be widely used in pharmaceutical,chemical,foodstuff industry etc.
2.The FG series Boiling Fluid Bed Dryer is one of the standard process equipment in the solid preparation production.for example:the production of tablets,granules and other wet granules.
3.The FG series Boiling Fluid Bed Drye has many fuctions.such as mixing,granulating etc.and used for fast dry & wet mixing, homogenizing,humidifying and granulating of the powder.
Application：
1.The FG series Boiling Fluid Bed Dryer can be widely used in pharmaceutical,chemical,foodstuff industry etc.
2.The FG series Boiling Fluid Bed Dryer is one of the standard process equipment in the solid preparation production.for example:the production of tablets,granules and other wet granules.
3.The FG series Boiling Fluid Bed Drye has many fuctions.such as mixing,granulating etc.and used for fast dry & wet mixing, homogenizing,humidifying and granulating of the powder.
Working principle:
1.The FG series Boiling Fluid Bed Drye is composed of main machine (processor), air handling unit(AHU), heating and control systems. When operating, charge the materials into the Bowl, set the procedure and parameters according to process requirements
2.Start the processor.The inlet air is filtered by the air handling unit(AHU)and heated by the heating system
3.The processed air enters the processor to blow up materials into fluidization condition. Materials are apace dried and moisture rapidly vaporized.
4.When the operation has been finished; Move out the Bowl to lock with pharma Lifter for FBD/FBG Bowl for lifting and discharging the produced granules.
5.During the whole process, powder dust and cross pollution are effectively controlled.
Features:
1.The advanced technology design with high drying efficient.
2.Reasonable structure and stable performance,Closed sampling fnction
3.Easy operation
4.No dead corner or protrudded
5.High quality SUS316,SUS304 stainless steel.
6.PLC designed to ensure a fully automatic control.
7.Process parameters can be printed and original data are reliable.
8.Meets FDA/GMP requirements
9.Passed CE/CQC certificate
10.CIP online cleaning system can be chosen to install
Technical Parameter
