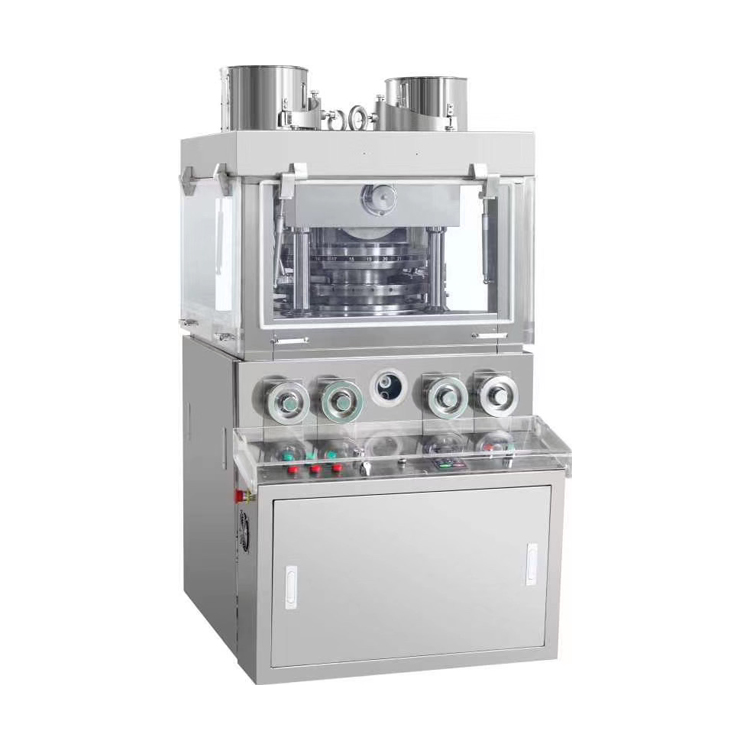

Main application This machine is a single-press/doule-press type, continuous automatic tablet press for pressing granular raw materials into tablets. It is mainly used in pharmaceutical industry and also the chemical, food, electronic, plastic and metallurgical industries.
Summay:
Main application This machine is a single-press/doule-press type, continuous automatic tablet press for pressing granular raw materials into tablets. It is mainly used in pharmaceutical industry and also the chemical, food, electronic, plastic and metallurgical industries. Feature The machine is fully-enclosed, made of stainless steel, meet the G.M.P requirement It has transparent windows so that press condition can be observed clearly and the windows can be opened. Cleaning and maintenance is easier. The machine can press not only round tablets but also different geometrical shape tablets, annular tablets, and the tablets may have the impressed letters on both sides. A power suction unit is attached to take the residual powder during operation so that the blockage powder can be collected and be reused. An overload protection unit is included in the system to avoid the damage of the punches and apparatus. The machine’s worm gear drive adopts fully-enclosed oil-immersed lubrication with long service-life, preventing cross pollution.
Main Features:
1.The machine is compliance with the GMP requirement on the production of pharmaceuticals.
2.The compression parts is entirely separated from the driving mechanism.
3.The compression area is enclosed with transparent organic glass. To prevent contaminates. The compression area can be specially treated. All surface being smooth and easy to clean.
4.The mechanical buffer unit will prevent punches and apparatus from overload damage.
Technical parameters:
| Model | ZP-47D |
|
Stations (unit) |
47 |
|
Maximum compression (KN) |
100 |
|
Max. Diameter of tablet to be produced (mm) |
25 |
|
Max. Filling depth (mm) |
18 |
|
Max. Thickness of tablet (mm) |
6 |
|
Power of the motor |
4 kw |
|
Weight |
1950kgs |
Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.

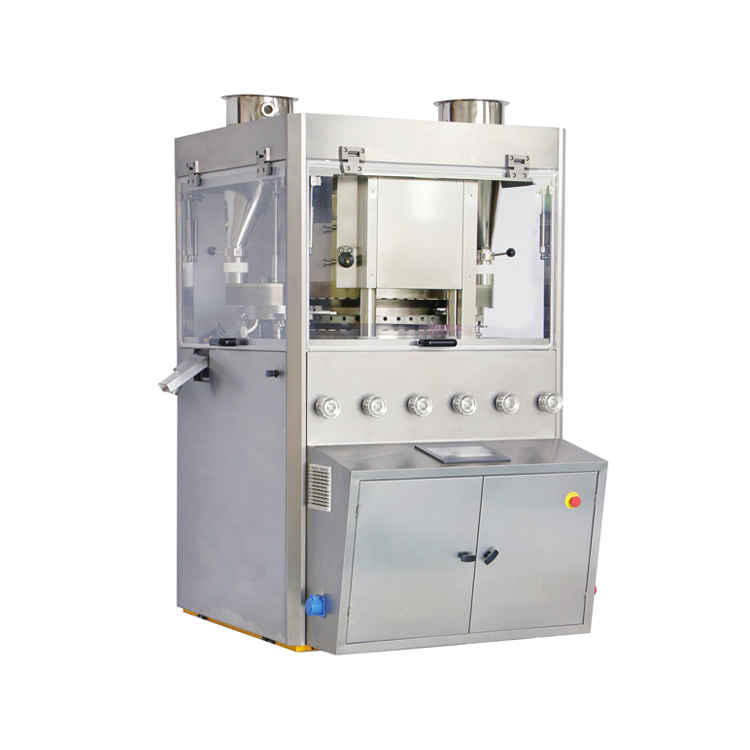

Gzpk620 double discharge high-speed rotary tablet press is designed with double forced feeding and double discharge structure. The process of filling, metering, pre pressing, main pressing and tablet discharging is completed twice a week by rotating the punching plate. The maximum output can reach 580000 tablets / hour. The equipment has stable working performance, stable machine operation and low noise. Replace one set of guide rail, press double-layer piece.
Learn More

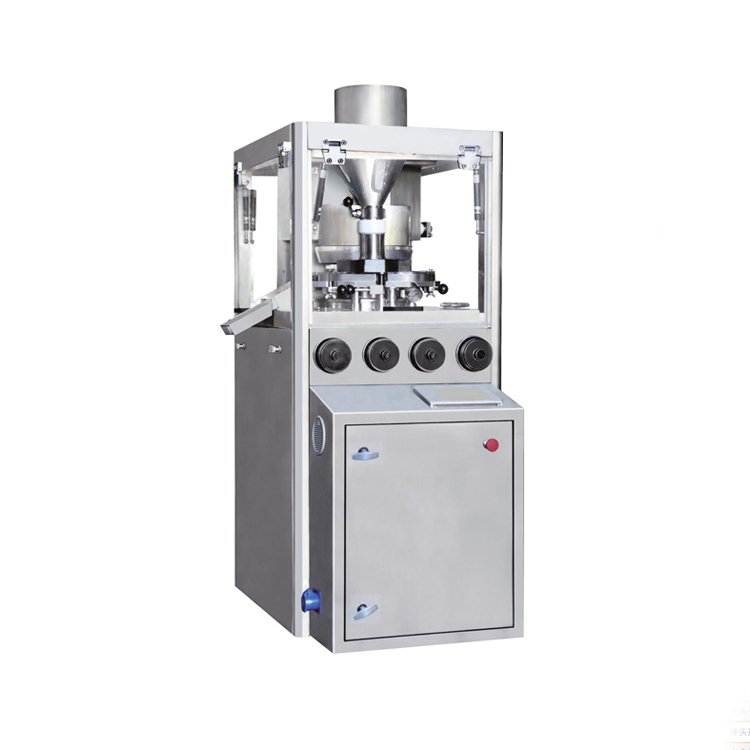

The machine is a single press type,continuous automatic tablet press machine for pressing granular raw materials into tablets.Rotary tablet press is mainly used in pharmaceutical,chemical,food electronic, plastic and metallurgical industries.Machine for precision machined stainless steel made of aluminum alloy bracket for the upper and lower independent
